AGGREGATE SCREENS Compass Wire is a one stop shop provider for original equipment manufacturer (OEM) replacement screens for both portable plants and stationary plants. We supply hooked screens and edged preps, panels, and trommel screens and parts, for aggregate customers. Compass Wire offers a wide variety of screening media. Our aggregate screens are designed for companies screening gravel, asphalt, sand, limestone, and more!
High carbon and stainless-steel openings are available for almost immediate shipment from our extensive inventory. Special sizes, styles, and materials are always available. Shroud materials including stainless, galvanized and mild steel, and other materials are available on request.

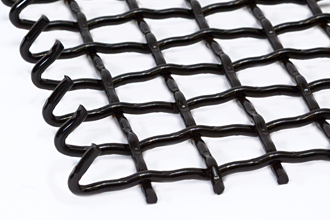

VIBRATORY HOOKED REPLACEMENT SCREENS
Variety of Hooked Screens for Aggregate
Vibrating replacement screens are ideal for a wide range for industries including stone, mineral, chemical, food, plastic and agriculture. Screens are fabricated based on your specifications – available in both standard and custom sizes. Whether separating solids from liquids, or sizing other material, our hooked screens are produced to your specifications. Screens can be fabricated with inserts, backing cloth, open end preparation, heat sealed protective tape, etc. Compass Wire can help you find the best screen style for the aggregate materials you are processing.
WIRE CLOTH SCREENS
Compass’s Wire Cloth Screens are fabricated to suit your requirements and come in a variety of material choices and hook and edge prep materials.
- Greater throughput
- Various width and lengths
- More cost effective than rubber or polyurethane
- Designed to withstand product impact and vibration fatigue
- Stainless steel, high carbon & low carbon steel alloys materials available
- Hook and Edge Prep materials – Mild Steel, Galvanized Steel, Stainless Steel, Custom Material

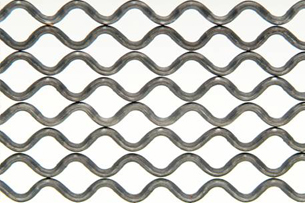

Wire Cloth Weave Styles
Efficient screening of materials requires the right weave. We have one of the largest selections of weave styles available. More weave selection means better designs for special needs… aggregate production, mineral sizing, grain drying, traveling water screens, power plant applications, livestock flooring and many others. Select from the weaves shown here or call us for information on special fabricated screens.
- Double Crimp- All around performance for medium to heavy wire in relation to screen opening size. Efficient and long-wearing in a variety of applications.
- Loc-Crimp – For light to medium wire in relation to screen opening size. Wire is locked in place for long wear and accurate screen openings for the life of the screen.
- Loc-Crimp Double-Crimp – Single shoot oblong openings solve minor blinding problems for better flow
- Flat Top – Improves material flow with flatter surface than other weaves. Lock weave maintains accurate openings.
- Tri-Loc – Long openings will keep sticky or wet material flowing freely. Weave holds wires securely yet permits slight vibration to keep openings clear.
- Intercrimp – When open area is important. Extra crimps provide locking and tightness for light wires in relation to the large openings
- Tri-Mesh – All the advantages of Tri-Loc weave with Loc-Crimp in one direction and Dbl-Crimp in the other. In addition, the length of the slot can be made to any opening and wire specification
Non-Blinding Screens
Compass Wire offers Non-Blinding Screens (images below) – these self-cleaning screens are made of wires that vibrate independently to keep both production rates and product quality at the highest level. All non-blinding screens are available in oil-tempered and stainless steel wire, and can be hooked with any edge style to fit all screening equipment.
 |
A-Style Screens
- Triangular Shaped Openings
- Resilient to damage from oversized material
- Most accurate for sizing
|
 |
B-Style Screens
- Diamond-shaped openings
- Accurately size dry or damp material
- Also available in High Carbon wire
|
 |
C-Style Screens

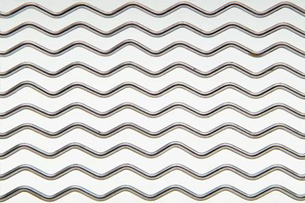

- Herringbone weave pattern
- Prevent roots, grass and other debris from clogging screen surface
- Used where gradation from raw to finished is not great
|
Available with polyurethane clusters
- Poly replaces the woven wire clusters for greater flexibility, long life and little to no blinging in damp and sticky applications.
TROMMEL SCREENS
These cylindrical screens classify aggregate products when processing wet materials such as soil, mulch, and sand.
We can fabricate our edges to OEM specs, or use our custom fabricated shrouded edge (up to certain wire diameters) or a welded-on edge.
Available wire diameters range from 0.135 to 0.375

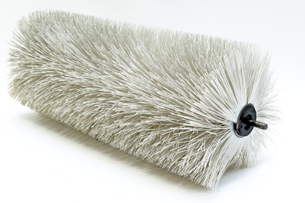

TROMMEL BRUSHES are used to clean the screens
PIANO WIRE
We carry a wide variety of piano wire in stock to ensure a quick delivery.
Harp fingers are also available:

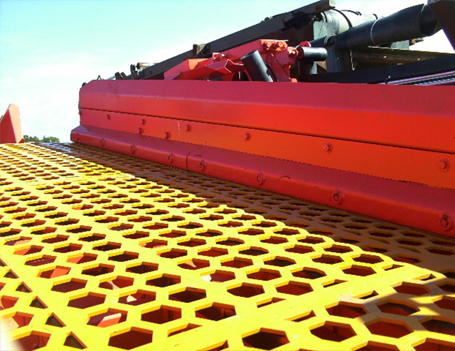

POLYURETHANE SCREENS
- Longer life span than wire cloth
- Excellent though put due to reduced plugging and blinding
- Easy installation and flexible installation options – snap in replacement areas!
- Modular or permanent with quick installation

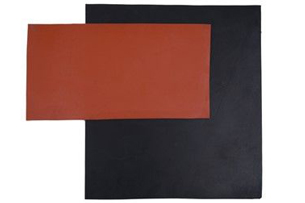

RUBBER SCREEN
- Rubber surface molded to steel backing plate
- Ideal for scalping applications
- Excellent abrasion, impact and wear resistance
- Used for wet or dry applications

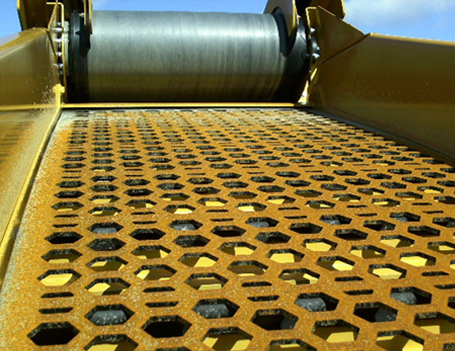

PERFORATED METAL PLATE
- AKA “punch plate”
- Available in various opening shapes – round, square, slotted or hexagonal perforated openings.
- Staggered opening to prevent blinding
- Efficient at screening material to a specific size
- Used for both Wet or Dry applications
- Superior wear and impact resistance
- Maximum open area
- Available in high carbon steel

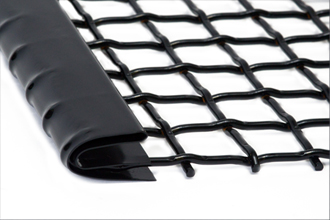

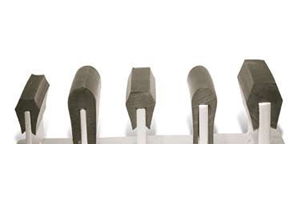

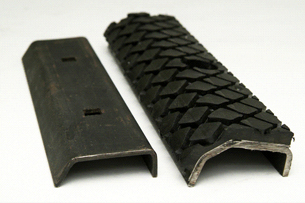

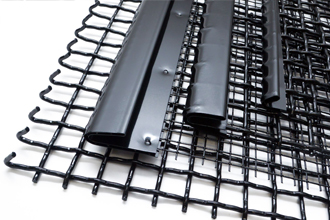

Hook and Edge Prep
Compass Wire fabricates screens with a variety of hooks and shroud material to suit your requirements.
Hook & Edge Prep Materials
Mild Steel
Galvanized Steel
Stainless Steel
Custom Material
Parts
Compass Wire carries a full line of replacement parts!

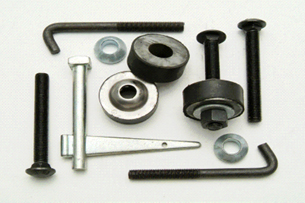

Bolts, Nuts, Pins, Wedges
|
|
Side Clamp Rails
|
|
Channel Rubber
|
|

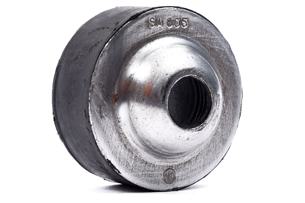

Deister Donuts
|
|
Skirtboard Rubber
|
|
Spray Bar Deflector
|
|
Trommel Brushes
|
|
T-Scale Rubber
|
|
Sharkskin Panels
|
|

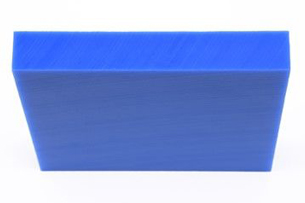

UHMV Panels
|
|

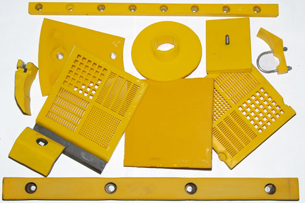

All Polyurethane Parts
|
|

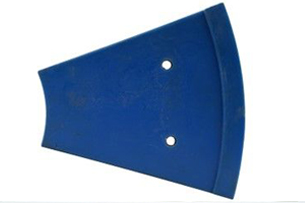

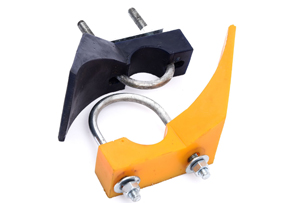

Classifier Shoes
|
Request For Additional Information:
|
