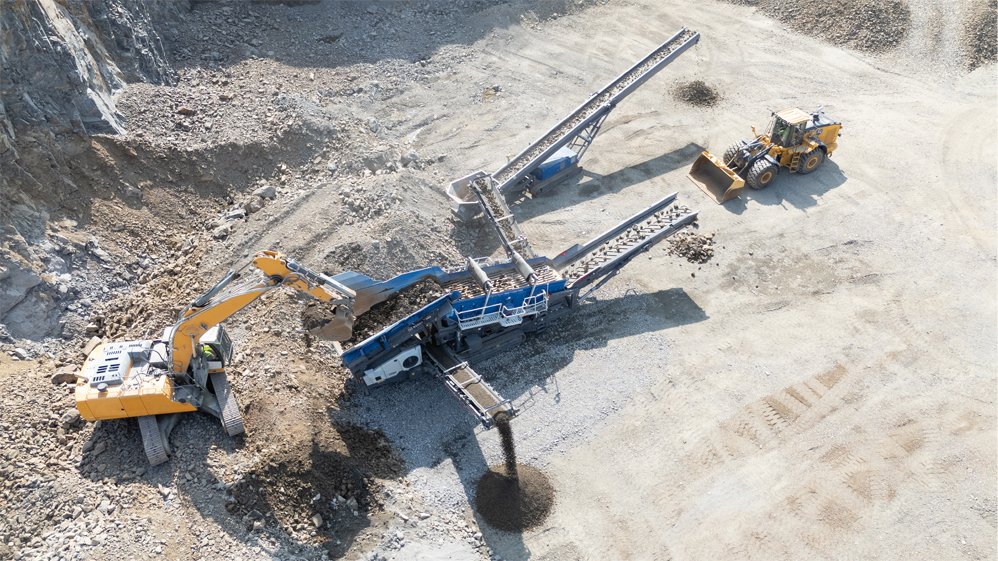

The new MOBISCREEN MSS 1102 PRO mobile scalper from KLEEMANN is characterized by its high output, simple operating concept, and outstanding ergonomics. Thanks to its Dual Power drive, the machine can be operated fully electrically, scoring top marks when it comes to zero operating emissions.
High operational flexibility is guaranteed by the infinitely variable adjustment of the speed of all conveyor belts and easy conversion from two to three final grain sizes. The wide setting range of the screen casing angle (12.5 – 17.0°) makes it possible to simultaneously achieve high screening performance and very good final product quality. A wide range of screening media enables efficient utilization of the plants. Whether these are finger decks for loamy excavated soils or square mesh for classifying decorative stone chips – the screen decks of the MOBISCREEN 1102 PRO can be fitted with screening media to meet the needs of each individual application. The screen decks can also be fitted with a combination of screening media. Overall, the new plant offers comprehensive configuration diversity to impress as a standalone machine or in conjunction with further KLEEMANN plants. Simple Operating Concept for Reliable Screening Applications The KLEEMANN screening plants can now also be equipped with the SPECTIVE CONNECT option. This digital application provides operators with all relevant data such as speed, consumption values and fill levels directly on their smartphone. The stockpile monitoring function provides a display of the current status of material stockpiles. When a predefined value is reached, a message appears indicating that the stockpile should be cleared as soon as possible. This makes the work easier and increases productivity. Good Accessibility Improves User-Friendliness Last but not least, easily accessible fuel filling nozzles on both sides of the plant guarantee a smooth refueling procedure even if one side of the plant is more difficult to access, e.g. due to a ramp or piles of aggregates. Electro-Hydraulic Dual Power Drive
|
Compact, Powerful, and Versatile-
Programs
- Contact Us
- About Us
New Kleemann Plant Marks Commitment to Industry
In early 2010 Kleemann GmbH completed its new headquarters and state-of-the-art manufacturing plant near Göppingen, just east of Stuttgart in south-central Germany.
The new plant marks Kleemann’s commitment to the minerals processing industry and incorporates the highest production technologies for the manufacture of aggregates and minerals processing equipment.
This new “greenfield” manufacturing plant is making Kleemann mineral processing equipment more available, and will speed product delivery in North America in coming months. “With 350,000 sq. ft. of production area and 40,000 sq ft of administration area, Kleemann will excite the market with new models and features for 2010,” said Evan Clarke, vice president.
For over 150 years Kleemann has led the minerals processing industry with design ingenuity, producing crushing and screening equipment for many leading markets. Since being acquired by the Wirtgen Group in 2006, the company has experienced dramatic growth which has led to reinvestment by the group to help streamline production and allow for greater volume for its new expanding markets.
“As Kleemann gathers momentum within the United States and Canadian markets, and new dealers take on the product line, many customers are seeing the ‘Kleemann Advantage’,” Clarke said. “We bring to the market a wide range of track mobile crushers and screens with many unique features.”
The new plant utilizes the most modern German high-tech manufacturing processes, including short internal product assembly lines. On the new 1.34 million sq. ft., site, the new manufacturing facility covers an area of 376,736 sq. ft., complemented with a 43,055 sq. ft. administration building. The oversized interior capacity of the new main production facility accommodates the enormous dimensions of Kleemann’s largest crushing and screening machines.
In the plant’s central warehouse contains two storage zones in which some 10,000 items are stocked. “On average, 200 items with a total weight of 8.8 tons are handled here each day,” said Kleemann central warehouse manager Martin Zemmel. “We really benefited from the know-how of the other Wirtgen Group companies when building our new facility.”
Kleemann’s new painting facility for large parts is one of the largest such facilities in Germany, with a tremendous load-bearing capacity of 33 short tons, and around 21,500 sq. ft. of floor space. Kleemann’s switch-over from wet spray painting to powder-coating not only marks a major step towards boosting surface quality, but also has far less of an environmental impact, with the system far exceeding the requirements of the EU environmental guidelines.
Kleemann’s Roots Run Deep
Kleemann is a newcomer to the North American aggregate processing market, but its roots lie deep. Established in Germany in 1857, Kleemann was acquired by Wirtgen Group in 2006. Today, a growing network of equipment distributors and dealers is enabling Kleemann Inc. USA to boost its domestic profile and serve customers in North America.
Today Kleemann manufactures and markets a broad range of durable, productive mobile and stationary processing equipment and technology for crushed stone, demolition waste and mixed construction waste.
Kleemann’s product brand names are:
• The MOBICAT mobile primary jaw on crawler chassis with feeding unit, pre-screen and conveyors built in various sizes ranging from 100-1,000 tph capacity
• The MOBIREX mobile primary impactor on crawler chassis with feeding unit, pre-screen and conveyors built in various sizes ranging from 100 to 1,000 tph capacity
• The MOBIFOX mobile secondary crushing machines with feeding unit, impact crusher and a screen producing up to 3 grain sizes
• The MOBICONE mobile secondary crushing machines with feeding unit, cone crusher and a screen to produce up to 3 grain sizes, and
• The MOBISCREEN mobile screening machines, producing up to 4 grain sizes with fixed or swiveling discharge belts, with a screening surface dependent on ultimate use.
BACKGROUNDER
Wirtgen America, Inc., Nashville, is the North American arm of the Wirtgen Group, the single-source marketer of the world’s most technologically advanced lines of asphalt reclaiming/recycling and concrete slipform equipment from Wirtgen, asphalt and soil compactors from Hamm Compaction Division, asphalt pavers from Vögele America Inc., and aggregates and minerals processing equipment from Kleemann.
In late 2004 Reinhard Wirtgen, founder of Wirtgen Group, was honored as one of the “Top 100 Private Sector Transportation Design & Construction Professionals of the 20th Century” by the American Road & Transportation Builders Association (ARTBA).
