Thor Telescopic Stackers

The ThorStack2™ telescopic portable radial stacker is available in lengths ranging from 115ft (35m) to 190ft (57.9m), capacities of 500STPH (450TPH) to 2000STPH (1800TPH) and belt widths of 36in (910mm) to 48in (1220mm).

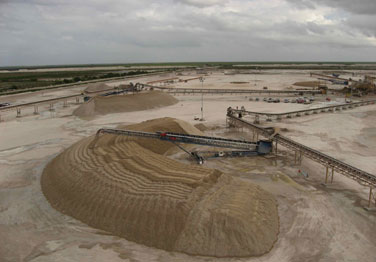

The T-190 ThorStack2™ telescopic portable radial stacker is an excellent choice
for high volume stockpiling in excess of 250,000 Tons.

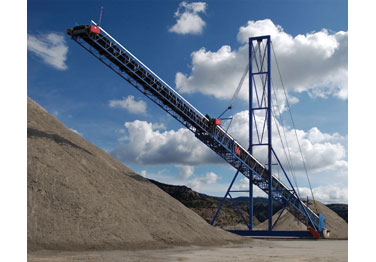

The TowerStack™ cable mast stacker is available in lengths up to 200ft (61m), capacities up to 4000STPH (3600TPH) and belt widths from 42in (1070mm) to 54in (1370mm).

The TowerStack™ cable mast design allows you to reach sizes and tonnages beyond any conventional stacker.

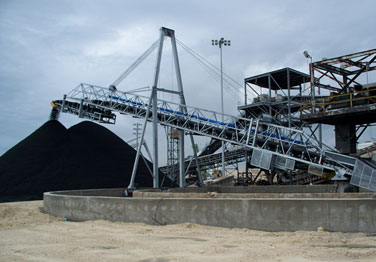

Thor Global combines experience in tower cranes with advanced telescopic shuttle technology in this custom coal application.

Since inventing the first telescopic stacker for the aggregate industry, Thor engineers have integrated state-of-the-art customized automation software, touch screen interfaces, ultrasonic sensing devices, remote operation capabilities and several innovative design features for increased performance, durability and safety.

Innovative design features and modifications include:
• PATENT-PENDING Fully Braced Undercarriage
• Restriction Stoppers for the Fully Braced Undercarriage
• Quick Release System
• Zero Speed Switches
• Automated Cable Slack & Tension Detection
• Floating Urethane (UHMW) Skirting

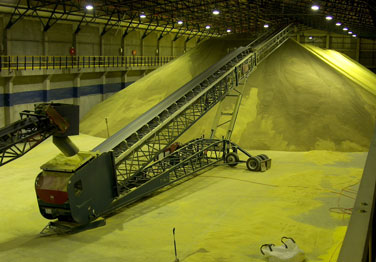

Thor Global provides custom in-line stockpile programming as shown in this indoor sulphur storage facility.

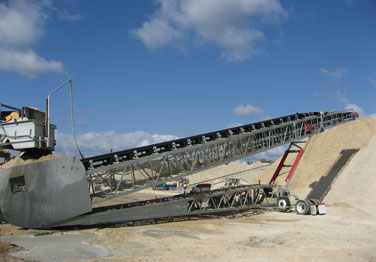

Thor Global is the only manufacturer to offer hot-dip galvanizing on all telescopic stackers.

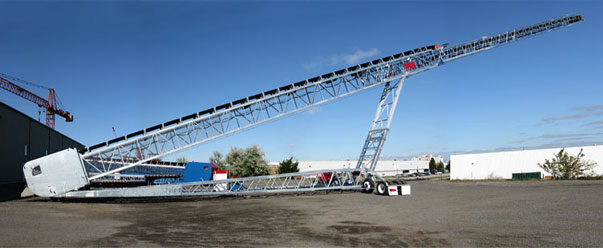

The T-115 ThorStack2™ is a low profile unit that is great for smaller applications.

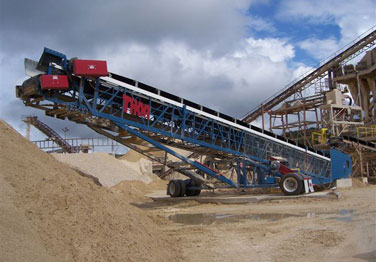

Telescopic technology eliminates segregation, compaction and contamination.

To learn more about Thor Telescopic Stackers go to the REQUEST MORE INFO button above or click on the DIRECT CONTACT button to reach Thor directly.
