Terex® Simplicity Inclined Screens are backed by over 80 years of design and build experience. Terex® Simplicity heavy-duty inclined screens can be configured with one to four decks depending on the model and offers two-bearing, four bearing and dual-mechanism screens. Terex Simplicity also offers an ever growing line of portable plants.
Manufactured since 1921, Terex® Simplicity Inclined Screens are proven to have long service life and reliability.
|
|
Terex® Simplicity Inclined Screens feature rugged, durable construction.
|
|
Terex Simplicity is also known for engineering expertise in designing customized machines to fit specific applications and installations. Terex Simplicity will design and build to fit your unique application needs, and can customize screens to fit any existing structure.
Rugged Dual Mechanism Inclined Screens
The Terex® Simplicity dual mechanism, two-bearing inclined screens are the rugged machines that you need for those heavy jobs. The dual 140mm mechanism is an alternative to the 160mm single shaft mechanism. This alternative extends bearing life on heavy-duty applications or increases speed on fine screen applications. This design is exceptionally tough. The screens are available in both two and three deck models in sizes ranging from 6’ x 20’ to 8’ x 24’.

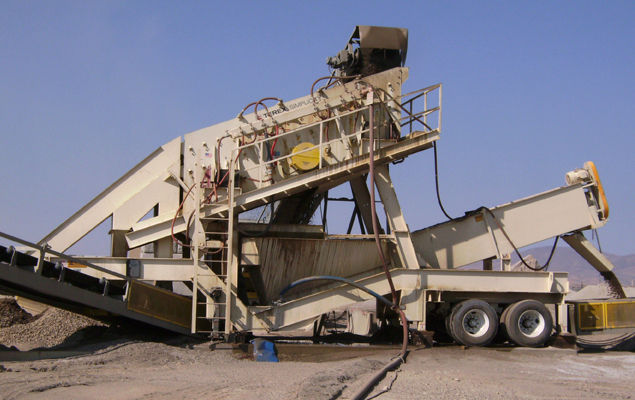

The TXW516S Portable Incline Screen and Wash Plant is one of many portable plants that are available in the Terex® Simplicity product line.
|
Flexible Triple Mechanism Inclined Screens
The Terex® Simplicity triple mechanism, two-bearing inclined screen is designed tough to handle high capacity scalping jobs or still give good flexibility for fine screening. The Triple 140mm mechanism is an alternative to the 160mm dual mechanism which is limited in speed capabilities due to the large bore bearing. This alternative extends bearing life on heavy-duty applications or increases speed on fine screen applications. The screens are available in two, three and four deck models in our larger sizes from 8’ x 20’ to 8’ x 24’.

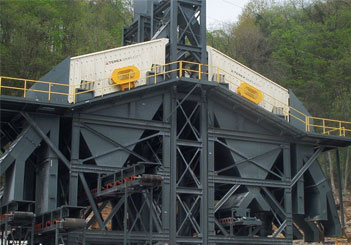

Terex® Simplicity Dual Mechanism Inclined Washing Screen.
|
|

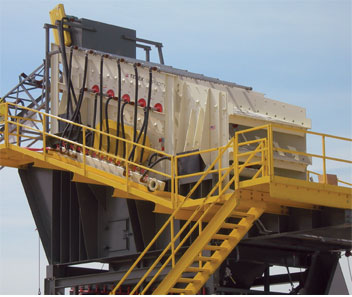

Terex® Simplicity Inclined Scalping Screens are designed to handle run-on-quarry or run-on-mine material.
|
|
Heavy-duty Scalping Screens
Terex Simplicity offers a complete line of vibrating scalpers in two-bearing, dual mechanism and four bearing models. Designed to handle run-on-quarry or run-on-mine material, Terex® Simplicity scalpers are high-quality, durable machines that are built to last and meet your specific application requirements. A vibrating scalper installed ahead of a crusher performs coarse sizing and provides a controlled, high-capacity flow of material. It eliminates crusher overload due to material surges. It also reduces crusher wear and minimizes productions of fines by bypassing material already at or below desired size. Terex Simplicity specializes in heavy-duty scalping screens in all sizes and configurations. Whether you’re looking for grizzly bar decks, punch plate, rubber decks or multi-sloped decks, we have the solution to your scalping application.
To learn more about Simplicity Inclined Screen go to the REQUEST MORE INFO button above or click on the DIRECT CONTACT button to reach Terex® Simplicity directly.
|
